RFID Chip

RFID Gaming Chip

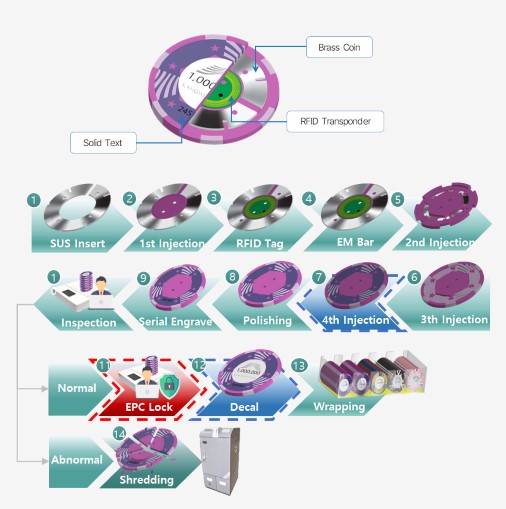

Gaming Chip is one of the most important assets in the casino which requires security and reliability. Having the current gaming chip, used UID(Unique Identification) of RFID IC which can encrypt and register the currency, denomination, and unique number of chips, and if it is recognized in RFID Antenna, it can promptly and accurately track the flow by providing authenticity discrimination and information of gaming chip. We produces 13.56MHz ISO 18000-3, Mode 3 international standard RFID Gaming Chip.

Specification

Very fast recognition speed with anti – collision function
Made of 100% PMMA, which make it possible to implement excellent touch with various colors
Solid Digit (Denomination) Injects Molding for Higher Stability and Modulation Prevention
It’s washable and strong against pollution
RFID transponder can not be removed without damage it completely.
512 bit User Memory, Up to 240 bit of EPC Memory, 96 bit TID,32 bit Kill Password
32 bit access password to allow a transition into the secured state
Recognizes within 2 seconds based on 200 chips.
Interfaces with CMS to automate all data flows, monitor and report on chips in/out.
Operating Frequency : 13.56MHz, High Frequency.
Air Interface Standards : ISO 18000-3 Mode 3, EPC Class-1 HF Gen 2
Memory retention time(@55℃) : Min. 10 years
Diameter : 40, 43, 45 mm (3 Size)
Thickness : 3.34 mm
Weight : 10g ~12.5g
Color : 2 or 3 Color
